Globe Valve

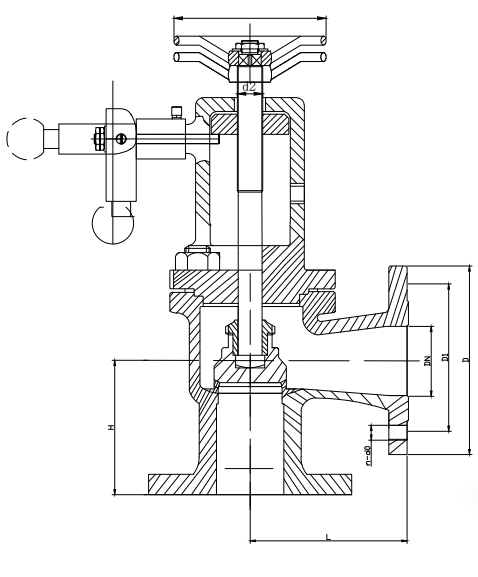

Bronze Angle Quick-Off Globe Valve

DN D C n-d L H AS BS AS BS 20 90 65 4-?11 150 95 240 320 25 100 75 4-?11 160 100 242 325 32 120 90 4-?14 180 105 245 330 40 130 100 4-?14 200 115 274 365 50 140 110 4-?14 230 125 283 381 65 160 130 4-

Request a quotation 中文

Product overview

DN D C n-d L H AS BS AS BS 20 90 65 4-?11 150 95 240 320 25 100 75 4-?11 160 100 242 325 32 120 90 4-?14 180 105 245 330 40 130 100 4-?14 200 115 274 365 50 140 110 4-?14 230 125 283 381 65 160 130 4-?14 290 145 325 437 80 190 150 4-?18 310 155 350 466 100 210 170 4-?18 350 175 375 500 125 240 200 8-?20 400 200 400 540 150 295 225 8-?20 480 225 430 580

Additional product information

Quick closing valve is a type of valve with a wide range of applications, characterized by fast closing, good sealing, and long service life. Quick closing valves play an important role in various industries and application scenarios. The marine quick closing valve is the main closing mechanism between the steam pipe network and the small turbine. In the event of an accident during operation, the steam entering the small turbine can be cut off in the shortest possible time.


DN	D	C	n-d	L	H
AS	BS	AS	BS
20	90	65	4-?11	150	95	240	320
25	100	75	4-?11	160	100	242	325
32	120	90	4-?14	180	105	245	330
40	130	100	4-?14	200	115	274	365
50	140	110	4-?14	230	125	283	381
65	160	130	4-?14	290	145	325	437
80	190	150	4-?18	310	155	350	466
100	210	170	4-?18	350	175	375	500
125	240	200	8-?20	400	200	400	540
150	295	225	8-?20	480	225	430	580
