Product overview
- FACTORY STRENGTH
The electric gate valve is a gate valve body equipped with a multi-rotary electric actuator, which makes the valve plate move linearly up and down to achieve remote control of the valve position switch and cut off or connect the pipeline medium. The electric device is equipped with a torque control mechanism, an on-site operating mechanism and a manual and electric switching mechanism. In addition to local operation, it can also perform remote operation, PLC control, 4~20mA current input and output intelligent control, etc. This valve is a control component that cuts off the medium flow by driving the gate plate to move in the vertical direction of the channel axis. During use, the valve must be fully open or fully closed and cannot be used to regulate flow.

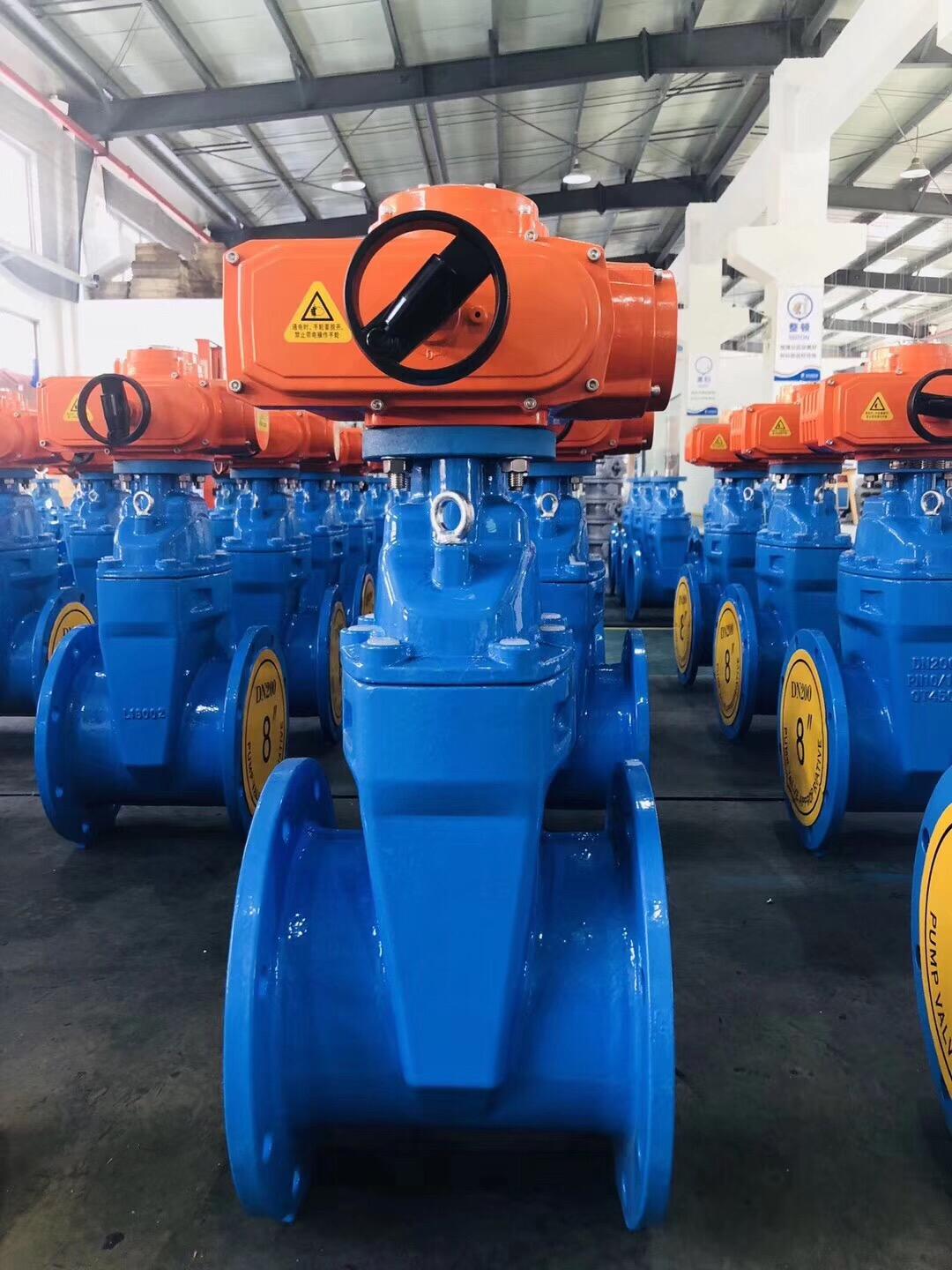

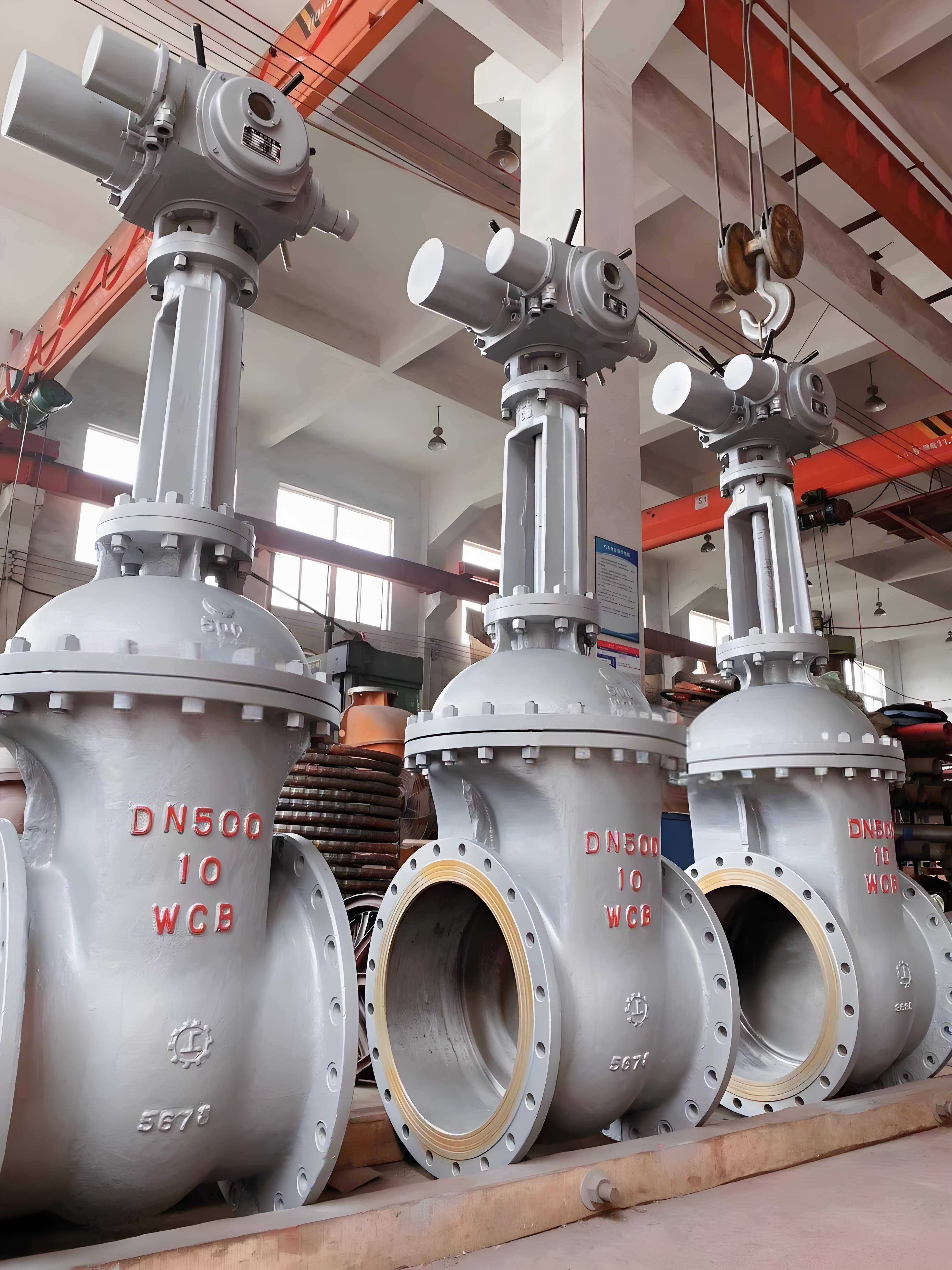

Electric Gate Valve
- Nominal diameter: DN40~500mm
- Pressure range: PN1.0~42.0MPa
- Working temperature: -29℃~+600℃
- Main material: carbon steel, stainless steel, alloy steel
- Design specification: GB/T12234
- Structure length: GB/T 12221
- Connecting flange:JB/IT 79
