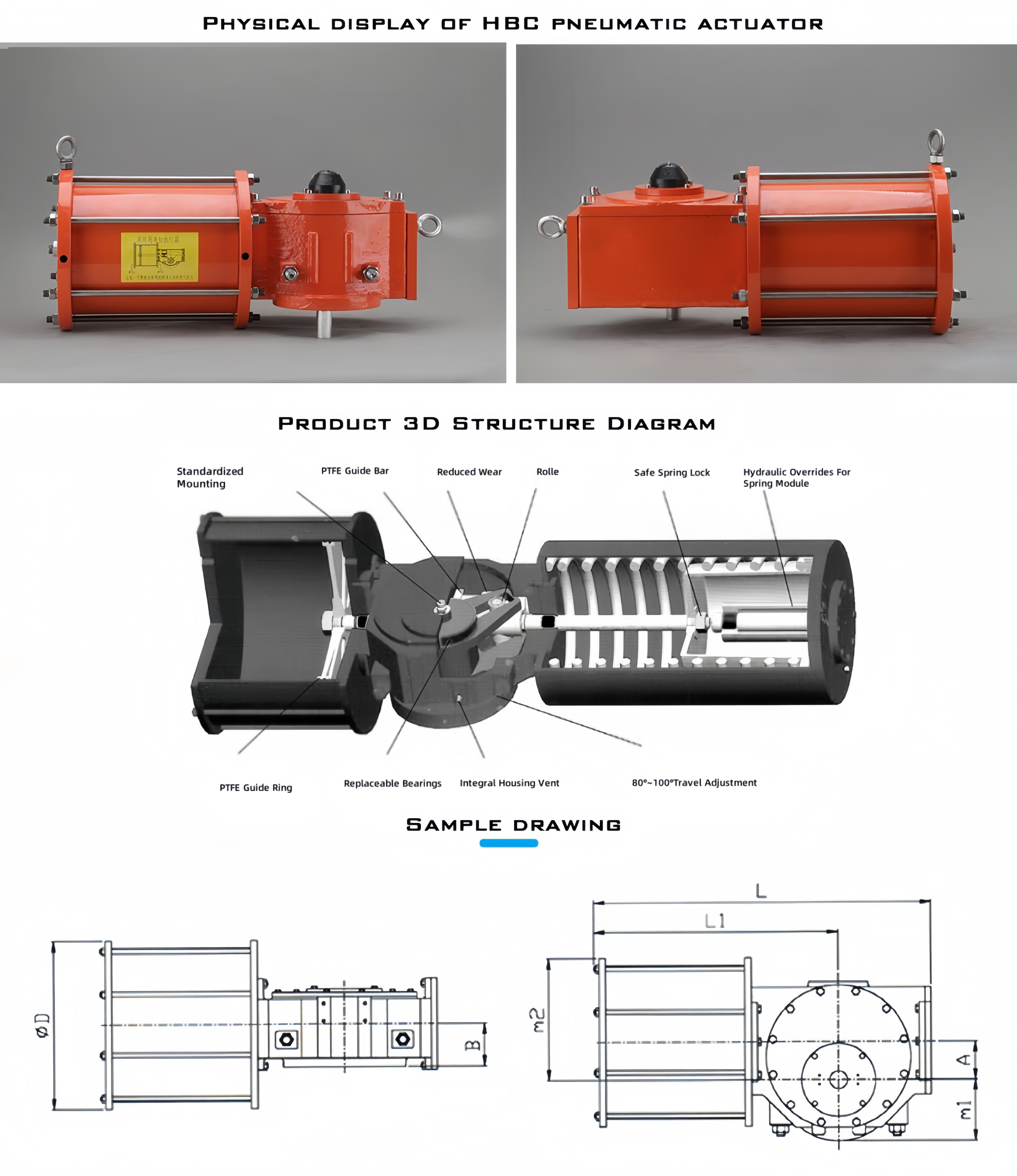

HBC Pneumatic Actuator
Scotch Yoke Mechanism: Delivers high torque output with excellent linearity and consistent performance throughout its stroke, ideal for precise control. Double-Acting Operation: Requires compressed ai
Product overview
Scotch Yoke Mechanism: Delivers high torque output with excellent linearity and consistent performance throughout its stroke, ideal for precise control. Double-Acting Operation: Requires compressed air to both open and close the valve, providing bi-directional power for maximum force in both directions and fail-safe positioning (requires air supply to hold position). High Torque Output: Generates significant rotational force, making it suitable for larger valves and higher pressure applications. Durable Construction: Built with high-grade materials (e.g., aluminum alloy body, hardened steel yoke & pin) for exceptional corrosion resistance and long service life in harsh environments. Smooth & Reliable Action: The scotch yoke design ensures smooth, low-friction operation with minimal wear over time. Wide Compatibility: Standard interfaces (ISO 5211 mounting pad) ensure easy and direct mounting onto most popular quarter-turn valves. Versatile Application: Perfect for oil & gas, chemical processing, power generation, water/wastewater treatment, HVAC, and general industrial automation. Multiple Sizes & Torque Ratings: Available in various sizes to match specific valve torque requirements (Specify available sizes or torque range, e.g). Standard Accessories: Typically includes pre-drilled mounting pads and dual air inlet ports (NPT or as specified). Optional accessories like solenoid valves, limit switches, and positioners available.
Additional product information
Experience robust and reliable quarter-turn valve automation with our high-performance Scotch Yoke Double-Acting Pneumatic Actuator. Engineered for demanding industrial applications, this actuator converts pneumatic pressure into powerful, smooth rotational torque to operate butterfly valves, ball valves, and dampers efficiently.
Scotch Yoke Mechanism: Delivers high torque output with excellent linearity and consistent performance throughout its stroke, ideal for precise control.
Double-Acting Operation: Requires compressed air to both open and close the valve, providing bi-directional power for maximum force in both directions and fail-safe positioning (requires air supply to hold position).
High Torque Output: Generates significant rotational force, making it suitable for larger valves and higher pressure applications.
Durable Construction: Built with high-grade materials (e.g., aluminum alloy body, hardened steel yoke & pin) for exceptional corrosion resistance and long service life in harsh environments.
Smooth & Reliable Action: The scotch yoke design ensures smooth, low-friction operation with minimal wear over time.
Wide Compatibility: Standard interfaces (ISO 5211 mounting pad) ensure easy and direct mounting onto most popular quarter-turn valves.
Versatile Application: Perfect for oil & gas, chemical processing, power generation, water/wastewater treatment, HVAC, and general industrial automation.
Standard Accessories: Typically includes pre-drilled mounting pads and dual air inlet ports (NPT or as specified). Optional accessories like solenoid valves, limit switches, and positioners available.
