Product overview
All stainless steel pneumatic flange angle seat valve: made of stainless steel material, pneumatic drive, flange connection, used for precise switching of fluid pipelines, with the characteristics of corrosion resistance, good sealing, and long service life, reliable and durable.
Technical Parameter
Medium temperature: -20 ℃~+180 ℃
Environmental temperature: -20 ℃~+60 ℃
Nominal pressure: 1.6MPa
Control gas: neutral gas, air
Gas source pressure: 0.3~0.8MPa
Specification: DN15-DN100
Valve body material: CF8/CF8M
Valve seat material: PTFE
Valve stem material: 304/316L
Sealing ring material: NBR
Flange pneumatic angle seat valves are mainly made of 316 stainless steel and are widely used in beer, textile printing and dyeing, pharmaceutical and medical equipment, food processing, rubber machinery, organic and inorganic chemicals, cleaning, disinfection, high temperature sterilization, water treatment and other industries. , suitable for mediums such as water, liquid, neutral gas, water vapor, slightly corrosive gases and liquids. Compared with electromagnetic nets and other valves, it has the characteristics of economical investment, safe use, maintenance-free and long life.

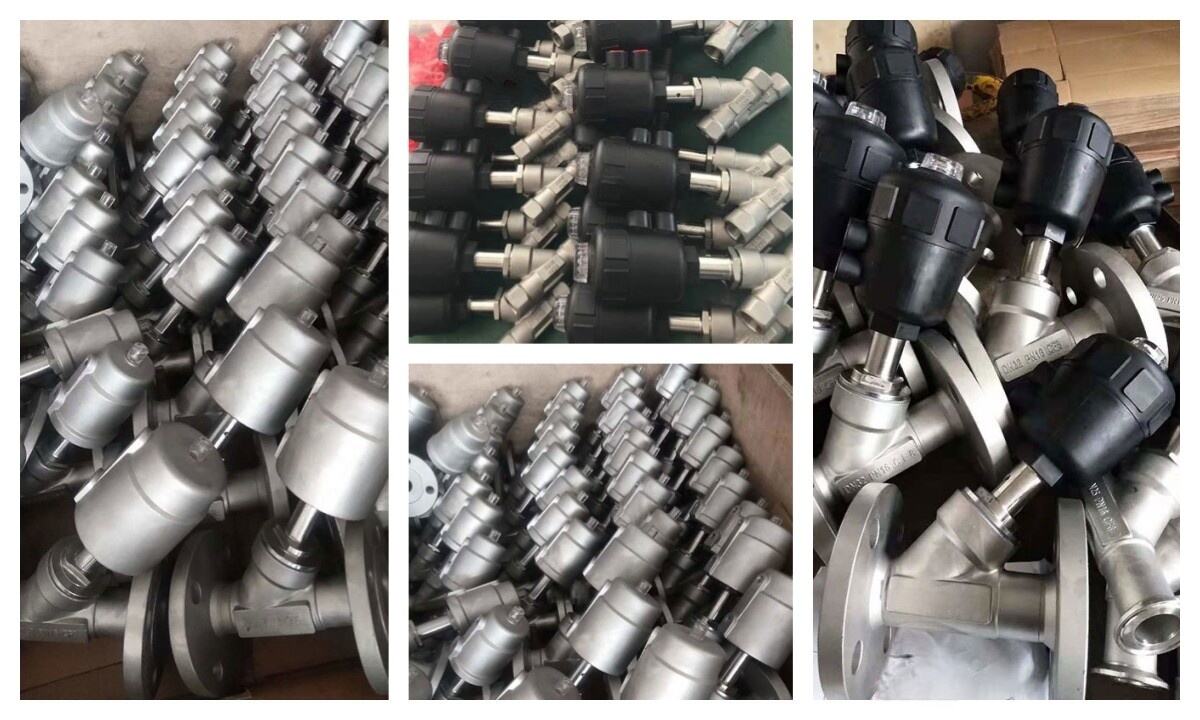

Pneumatic Angle Seat Valve
- Medium temperature: - 20 °C ~ + 180°C
- Ambient temperature: - 20 °C ~ + 60 °C
- Nominal pressure: 1.6 MPa
- Control gas, gas, air
- Air pressure: 03 ~ 0.8 MPa
- Size:DN15 - DN100
- The valve body materiat:CF8 CF8M
- Seat material:PTFE
- Stem materiat:304/316L
- Sealing ring material:NBR
