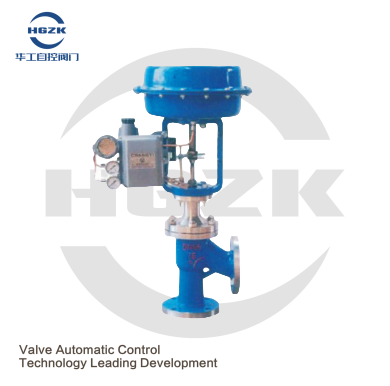

Pneumatic Diaphragm Angle Control Valve
The pneumatic diaphragm angle regulating valve is composed of a pneumatic diaphragm multi-spring actuator and an angle valve. It is small in size and light in weight. The valve core adopts a top guide
Product overview
The pneumatic diaphragm angle regulating valve is composed of a pneumatic diaphragm multi-spring actuator and an angle valve. It is small in size and light in weight. The valve core adopts a top guide structure; the flow path in the valve body is simple and has no dead angle; therefore, it can avoid coking, bonding, clogging and other phenomena of the medium, and has a certain self-cleaning ability. This product is suitable for regulating high-viscosity media containing suspended matter. Pneumatic diaphragm angle control valve Nominal diameter DN (mm): 20-200mm - Valve seat diameter DN (mm): 10-200mm - Nominal pressure PN (MPa): 6.4 - Connection type: Flange connection: according to JB79-59 standard - Air source connector: M16x1.5 Factory Strength
Additional product information
The pneumatic diaphragm angle regulating valve is composed of a pneumatic diaphragm multi-spring actuator and an angle valve. It is small in size and light in weight. The valve core adopts a top guide structure; the flow path in the valve body is simple and has no dead angle; therefore, it can avoid coking, bonding, clogging and other phenomena of the medium, and has a certain self-cleaning ability. This product is suitable for regulating high-viscosity media containing suspended matter.
Pneumatic diaphragm angle control valve
- Nominal diameter DN (mm): 20-200mm
- Valve seat diameter DN (mm): 10-200mm
- Nominal pressure PN (MPa): 6.4
- Connection type: Flange connection: according to JB79-59 standard
- Air source connector: M16x1.5
