Pneumatic Three-way Control Valve

Product overview

The three-way regulating valve is a valve that is connected to three pipes at the same time. Its structure is divided into two types: converging type and splitting type. The converging type mixes the two fluids into one fluid, and the splitting type divides the one fluid into two fluid. It is widely used in petroleum, chemical, gold, electric power and other industrial sectors for temperature control of heat exchange. It has the characteristics of high adjustment accuracy and stable switching performance.

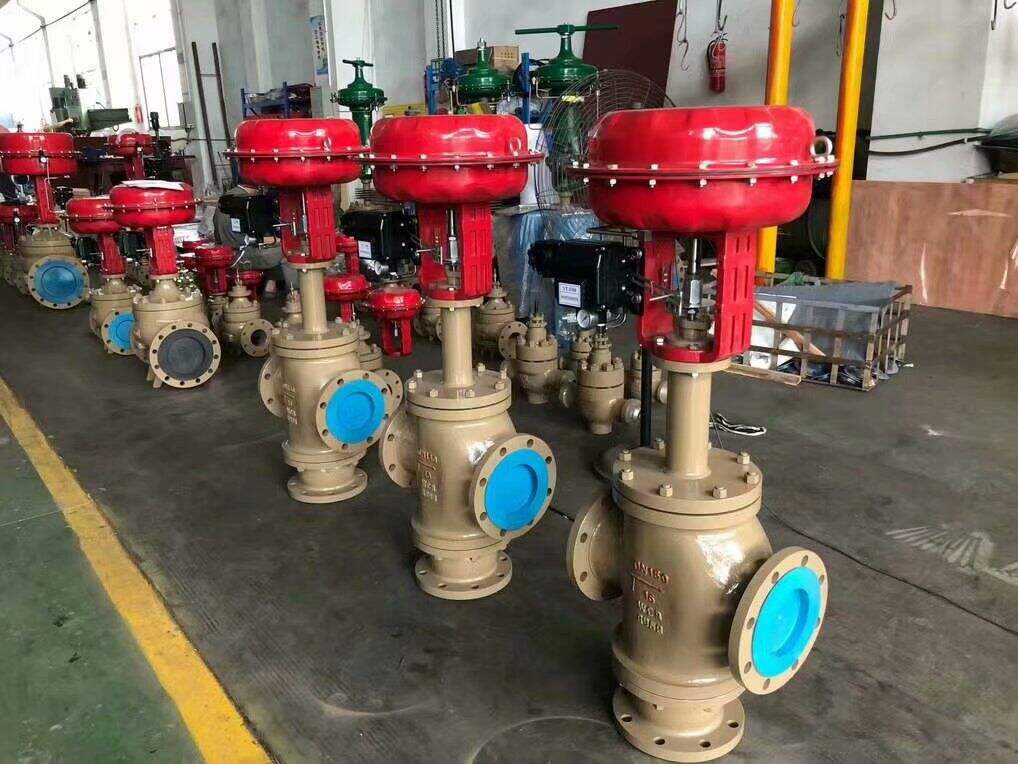

Pneumatic Three-way Control Valve

- Type:Q:Confluent type;X:Shunt type

- Nominal size DN:25-300mm

- Nominal pressure PN:PN1.6、4.0、64、10.0MPa:JS10K、16K20K、40K;Class150、300、600Lb

- Body material:WCB、WC6、WC9、LCB、CF8、CF8M、CF3M

- Body connections:Flanged type:RF、FM、RJ、TG

- Trim type:Separated cage

- Gland type:Bolt pressingtype

• Packing:V-shape PTFE packing, graphite packing each material operating pressure temperature limitation
