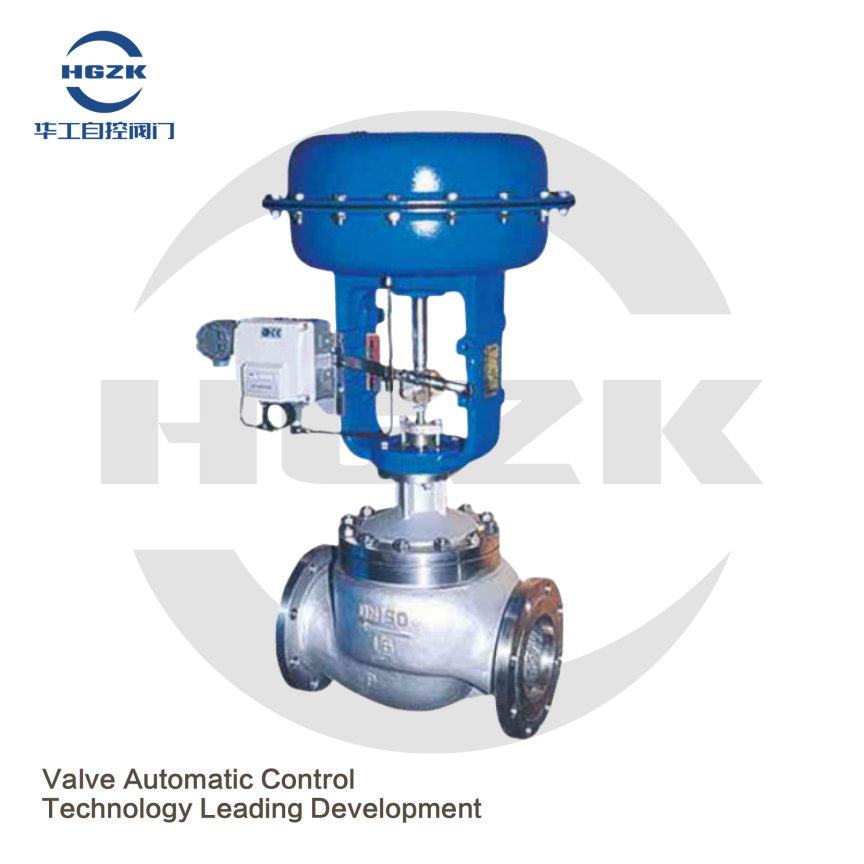

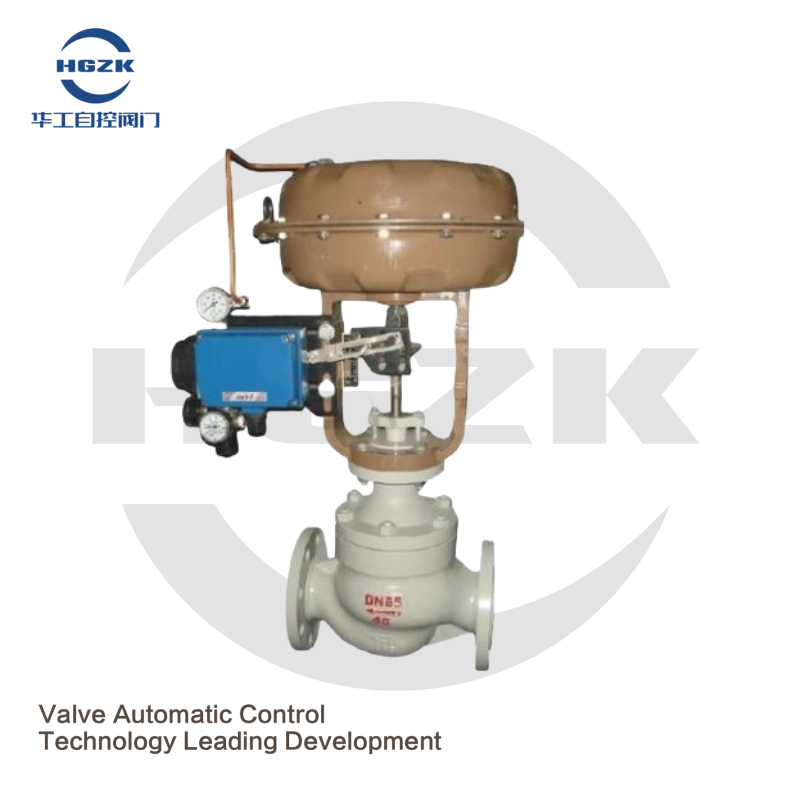

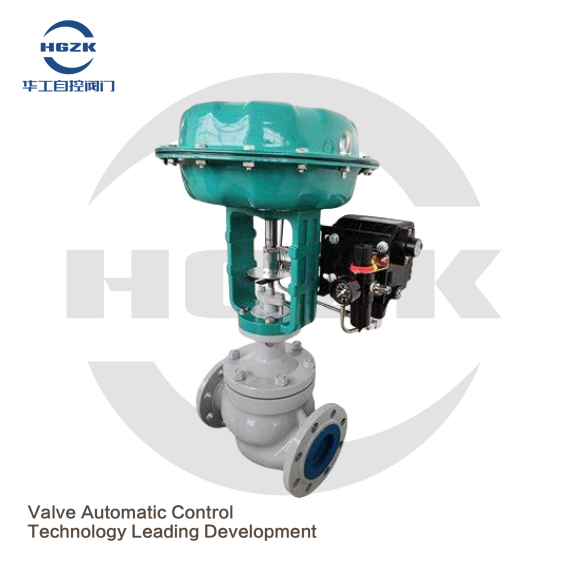

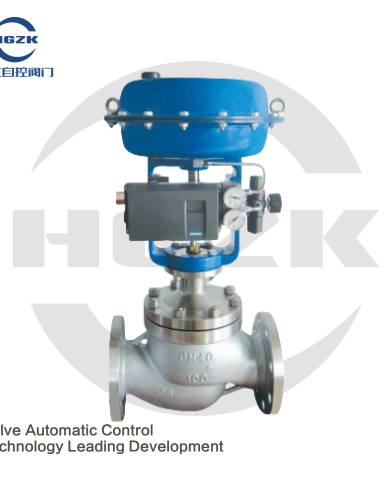

Small Pneumatic Single Seat Regulating Valve
The ZJHP pneumatic single-seat regulating valve is composed of a pneumatic multi-spring diaphragm actuator and a low-resistance single-seat valve. The new actuator is low in height, light in weight, a
Product overview
The ZJHP pneumatic single-seat regulating valve is composed of a pneumatic multi-spring diaphragm actuator and a low-resistance single-seat valve. The new actuator is low in height, light in weight, and easy to calibrate. The new valve body has a compact structure, unobstructed flow channel, and a large flow coefficient. This product has stable operation, reliable action characteristics, small valve seat leakage, precise flow characteristics, and a wide adjustable range. It will surely achieve high-quality control effects in a wide range of applications with its unique advantages. Small pneumatic single seat regulating valve Nominal diameter mm: 20-200mm - Valve seat diameter mm: 10-200mm - Nominal pressure MPa: 0.6, 1.6, 4.0, 6.4 - Medium temperature ℃: -15~200 (normal temperature type), -40~+250, -40~450 (medium temperature type) - Flange size: cast iron flange size according to JB78, cast steel flange size according to JB79 - Valve core material: 1Cr18Ni9, 0Cr18Ni12Mo2Ti Factory Strength
Additional product information
The ZJHP pneumatic single-seat regulating valve is composed of a pneumatic multi-spring diaphragm actuator and a low-resistance single-seat valve. The new actuator is low in height, light in weight, and easy to calibrate. The new valve body has a compact structure, unobstructed flow channel, and a large flow coefficient.
This product has stable operation, reliable action characteristics, small valve seat leakage, precise flow characteristics, and a wide adjustable range. It will surely achieve high-quality control effects in a wide range of applications with its unique advantages.
Small pneumatic single seat regulating valve
- Nominal diameter mm: 20-200mm
- Valve seat diameter mm: 10-200mm
- Nominal pressure MPa: 0.6, 1.6, 4.0, 6.4
- Medium temperature ℃: -15~200 (normal temperature type), -40~+250, -40~450 (medium temperature type)
- Flange size: cast iron flange size according to JB78, cast steel flange size according to JB79
- Valve core material: 1Cr18Ni9, 0Cr18Ni12Mo2Ti
